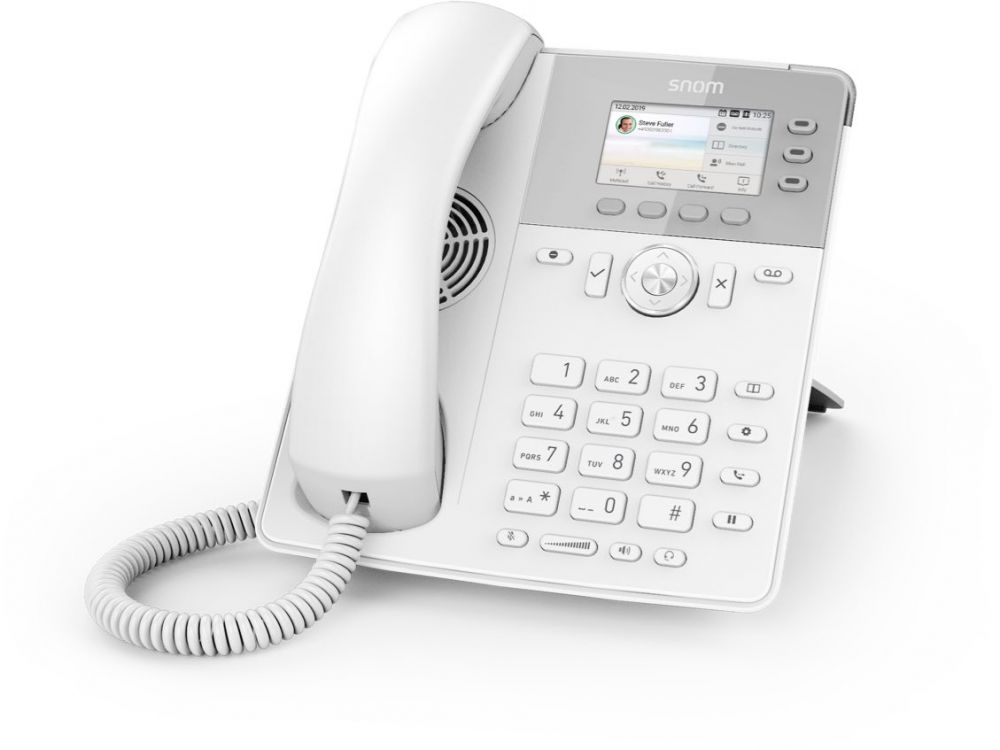

Snom D717 White (s/ PSU)

6 SIP identities / accounts
XML browser
Call lists for dialed, received, missed calls
Local directory with 1000 entries
Multiple language support
DTMF in-band / out-of-band / SIP-INFO
Interoperable with all major IP PBX platforms

Speed dialing; URL dialing; Local dial plan; Automatic redial on busy;
Call completion (busy/unreachable)(2); Caller identification; Call waiting;
Call blocking (deny list); Auto answer; Hold; Music on hold(2);
Blind and attended transfer;Call forwarding;
3-way conferencing on the phone; Extension monitoring, call pickup(2);
Call park, call unpark(2); Multicast paging; DND mode (do not disturb);
Keyboard lock; Client matter code (CMC)(2);
Unified Communications ready

(2) If supported by PBX

Audio

Codecs:
· G.711 A-law, µ-law
· G.722 (wideband)
· G.726, G.729AB, GSM 6.10 (FR)
Built-in assignable ringtones
Comfort Noise Generator (CNG)
Voice Activity Detection (VAD)

Configurable through web interface
Provisioning:
· Automatic loading of settings via HTTP/HTTPS/TFTP
DHCP Options 66/67
Snom Redirection Service
Remote management via TR-069 / TR-111

SIP (RFC3261)
DHCP, NTP
HTTP / HTTPS / TFTP
LDAP (Directory)
Dual Stack IPv4 / IPv6

Localization (language, time, dial tone); Red LED for call indication / message waiting;
4 context-sensitive keys; 3 programmable line / function keys with multicolour LEDs;
Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page;
Audio keys with LED indication: Mute, Speakerphone, Headset ;
Volume key; 5-way navigation key; OK and Cancel keys; Automatic backlight enabled

802.1X authentication and EAPOL
Transport layer security (TLS)
SRTP (RFC3711), SIPS, RTCP
HTTPS server/client
password-protected web interface
VPN-support
VLAN (IEEE 802.1Q)
LLDP-MED, RTCP-XR

Dimensions (approx.):
· 205 x 185 x 40 mm (LxWxD) w/o foot stand
· 205 x 185 x 200/220 mm (LxWxD) with foot stand
Weight (approx.): device 710g, footstand 120g
Input voltage: 5Vdc (SELV)
Power supply: PoE or 5Vdc power adapter(1), 10 Watts
Handset: 4P4C
Headset: 4P4C; Support for Snom EHS Advanced (1)
Hearing-aid compatible (HAC) handset
1 x USB 2.0 host port, Type A
Environmental conditions:
· Ambient temperature: 0°C to 35°C (32°F to 95°F)
· Storage temperature: -10°C to 45°C (14°F to 113°F)
· Humidity: 5% to 95% (non-condensing)
Included in delivery:
· Phone unit
· Footstand
· Handset with cord
Ethernet cable
Quick Start Guide
Colour: black or white

(1) Optional accessory

Type Approvals

CE Mark
Safety IEC 60950
